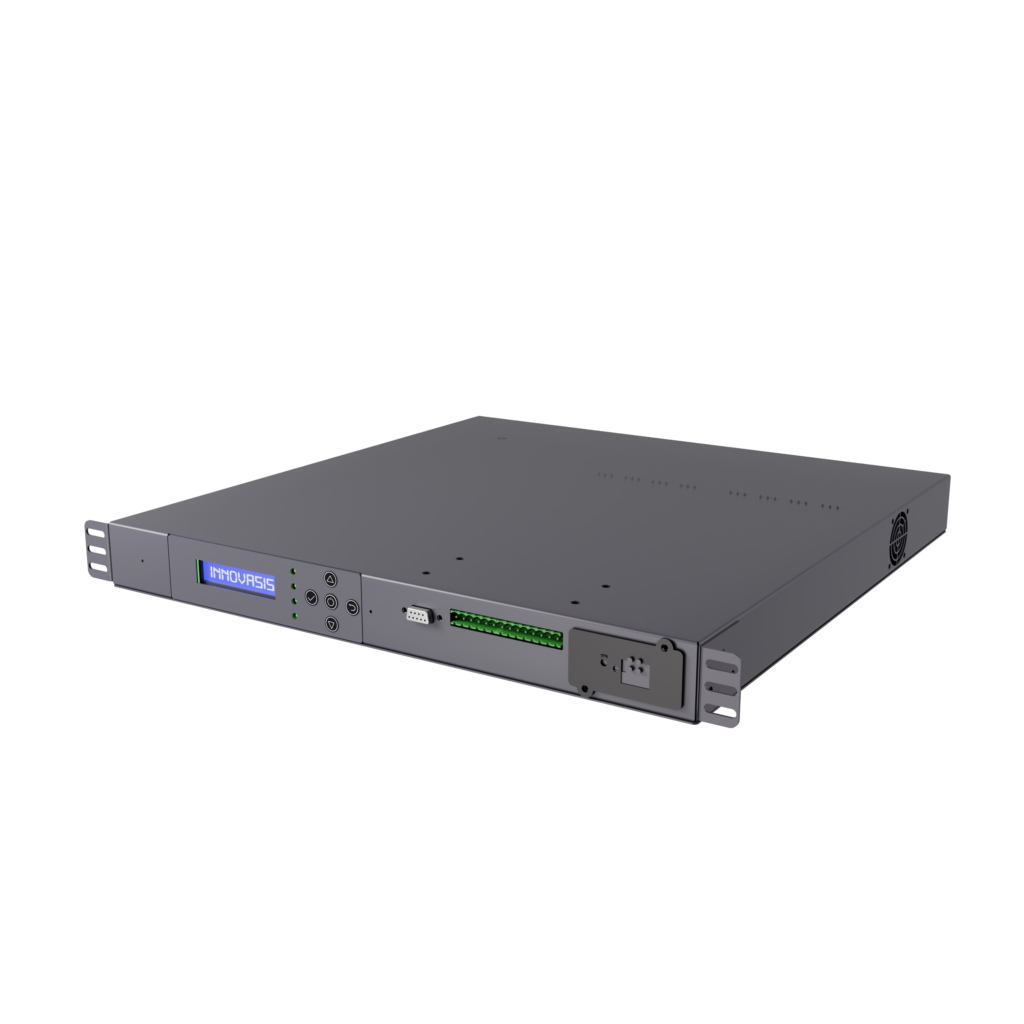

2Pole 16A , 3-4Pole 50-800A , 3-4Pole 1000-4000A

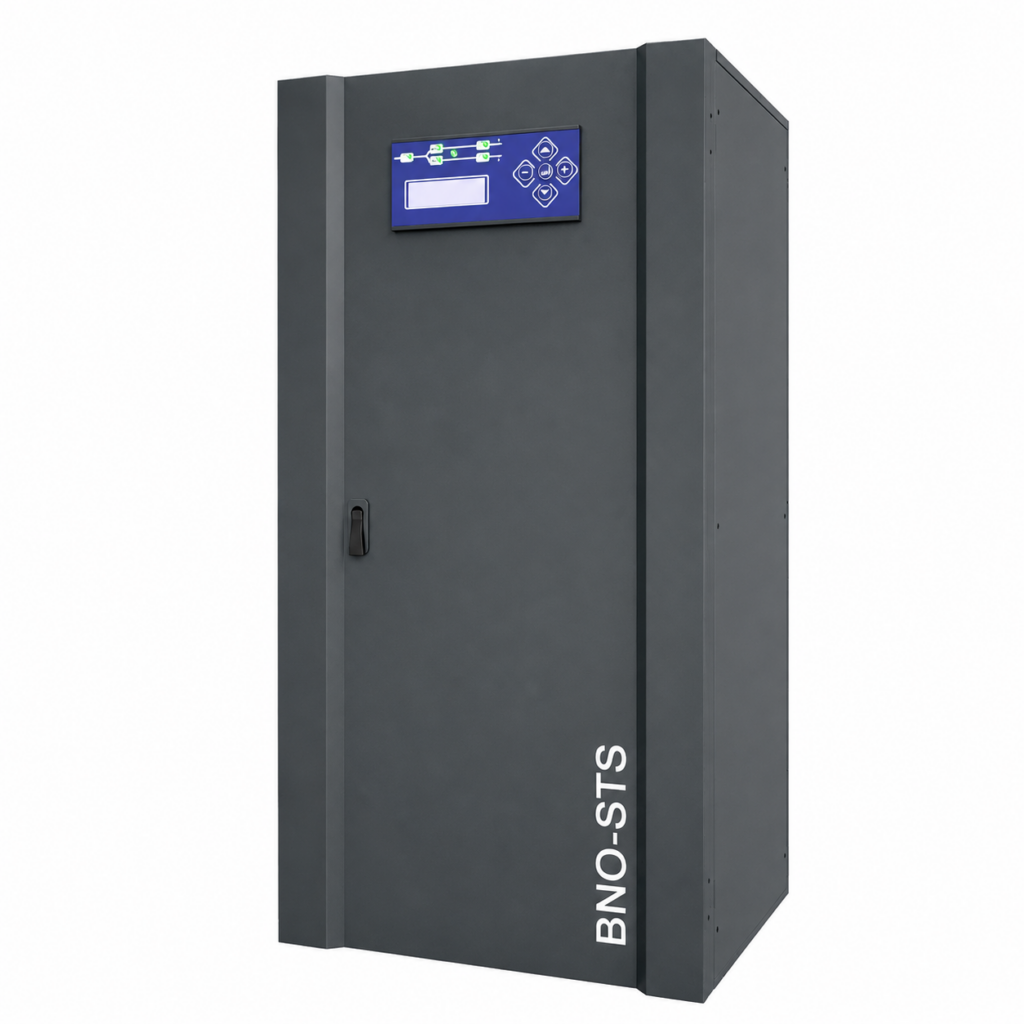

Static Transfer Switches (STS) are electronic devices designed to transfer critical loads seamlessly between two independent AC power sources. The system continuously monitors both AC inputs. If either source falls outside the predefined voltage or frequency tolerance limits, the critical load is automatically transferred to the alternate power source without interruption.
• Data Centers
• Airports & Transportation
• Broadcasting & Media
• Mission-Critical IT Systems
• Healthcare Facilities
• Telecommunication Systems
• Industrial Automation
• Financial InstitutionsFinancial Institutions
GENERAL FEATURES
- 2 AC input with 1 phase switching (3 source input option)
- Uninterrupted transfer between the independent sources
- Synchron/asynchron transfer feature
- Source priority selection
- Neutral transfer 2 pole option; 3 pole and neutral transfer 4 pole option
- Automatic and Manual transfer in case of failure on both sources
- Internal manual bypass
- Event Log with Detailed Parameters
- Module replacement without interruption under load at hotswap models (available 2 pole models)
- Input voltage parametre selection from the menu
- Easy Maintenance
- High Efficiency
- RS232/RS485 communication capabilities
- Modbus,SNMP multi
TECHNICAL FEATURES
