1kVA, 2kVA, 3kVA, 6kVA, 10kVA
These online double-conversion UPS systems are the ideal power protection solution for residential and office applications, PLCs on industrial production lines, low-power medical equipment, bank ATMs, and Information Technology (IT) environments.

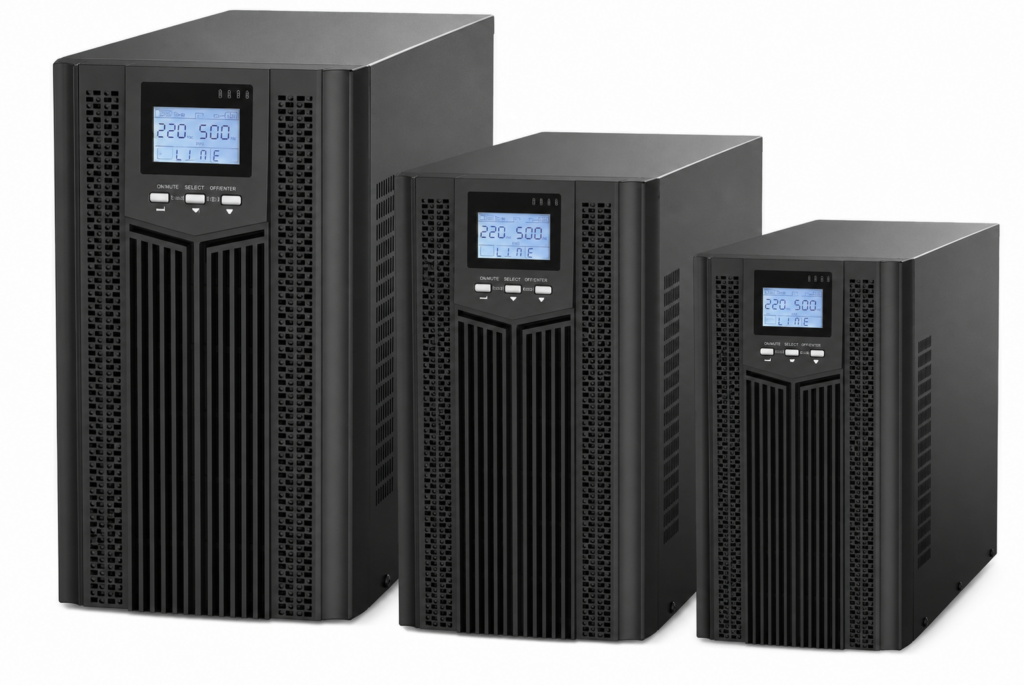

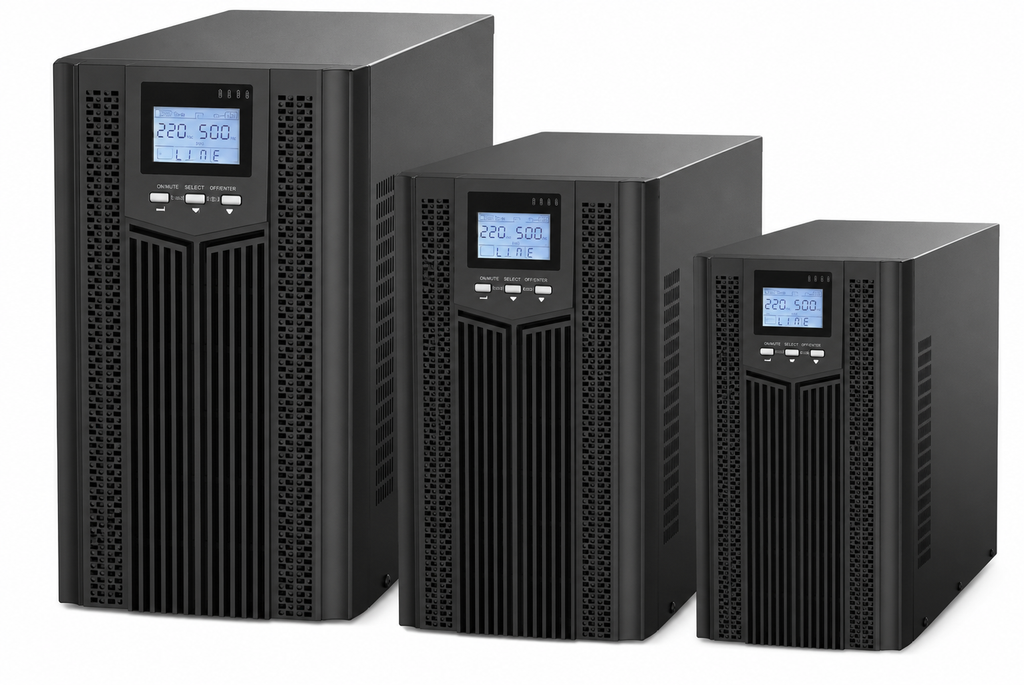

The 1 kVA, 2 kVA, and 3 kVA models are true plug-and-play solutions, allowing quick and easy installation without the need for professional commissioning.

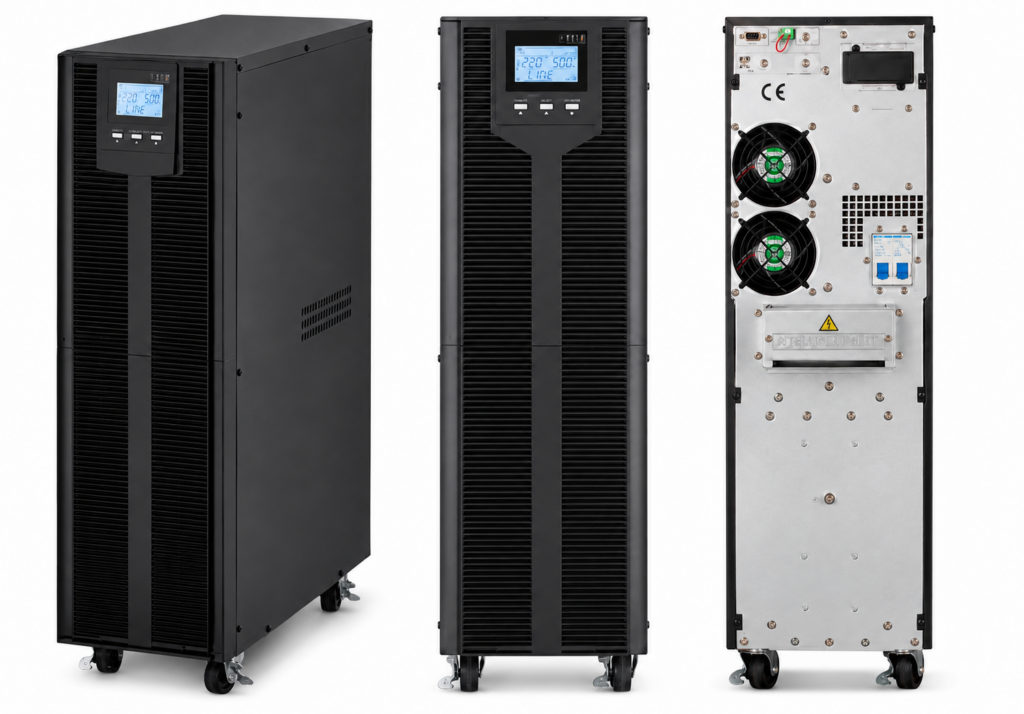

The 6 kVA and 10 kVA models require installation and commissioning by a qualified electrical professional to ensure safe and reliable operation.
All single-phase UPS models support the connection of external battery packs, enabling extended backup times to meet a wide range of application requirements. In addition, optional SNMP network management allows remote monitoring and management of the UPS, ensuring continuous visibility of system status and performance.
Rack options are available.
GENERAL FEATURES
- High Frequency and True Double-Conversion
- DSP (Digital Signal Processors) Technology
- Input Power Factor Correction (PFC)
- Wide Input Voltage Range (110~300V)
- Output Power Factor 1
- Cold Start Auto Sensing Frequency
- ECO Mode Operation for Energy Saving
- Selectable Output Voltage via LCD
- Output 50Hz/60Hz Frequency Converter Mode available
- Battery Low Voltage via LCD Power-On Self-Test
- Advanced Battery Management (ABM)
- Short Circuit and Overload Protection
- Automatic Charging in Off Mode
- Auto Control Fan Speed when Loads Varies
- Generator Compatible
- Standard RS232 Communication Port and RJ45 Protection
- USB/SNMP Communication Port (Optional)
- Emergency Power Off (EPO) (Optional)
- Extension Battery Bank (Optional)
- Manual Bypass N+X Redundancy Parallel (Optional)
- EMC, LVD and CE Certificated product
